There are several types of die-casting toolings, and they have different functions depending on the requirements. They include:
PqMold is your trusted one-stop custom manufacturing solution, from prototype design to manufacturing, through huge manufacturing resources, suitable technology, streamlined process, expert guidance, and perfect quality inspection process to turn your ideas into reality.
Providing high-precision and long-life die-casting mold services at competitive prices, combining cutting-edge die-casting mold technology with advanced production equipment, our expert engineers are dedicated to reducing cycle times by up to 50%+, with fast turnaround, obtaining in minutes Get a quote and getting your die casting mold within days.
With many years of manufacturing experience, PqMold offers the best solutions for all rapid prototyping and low-volume manufacturing needs. We streamline the innovation cycle into four simple but effective steps.
Just simply upload your CAD files and submit RFQs with clear information online.
We'll send you design for manufacturability analysis and transparent pricing.
Our experts will produce your parts with the required technologies and materials.
Your parts will be delivered to your door directly with stringent deadlines.
This section outlines the dimensional tolerances, machining accuracy, surface finish standards, and quality control criteria applied during die casting mold manufacturing. We follow international standards and strict inspection procedures to ensure mold precision, durability, and consistent part quality throughout production.
Dimension | Standards |
Size Tolerance | ±0.01mm |
Geometric Tolerance | ±0.05mm |
Surface roughness | Ra0.8μm |
Hardness | 48-52HRC |
Material | A380、A383(ADC12)、A413 |
We use high-quality tool steels and alloy materials specifically selected for durability, heat resistance, and long service life. Material selection is based on production volume, casting alloy type, and required mold performance to ensure consistent and reliable results.
Please browse through our extensive gallery showcasing precision die casting mold making created by our esteemed customers.
Find answers to common questions about die casting mold design, material selection, lead times, maintenance, and production capabilities. This section helps you better understand our tooling process, quality standards, and how PQMold ensures reliable and cost-effective die casting solutions.

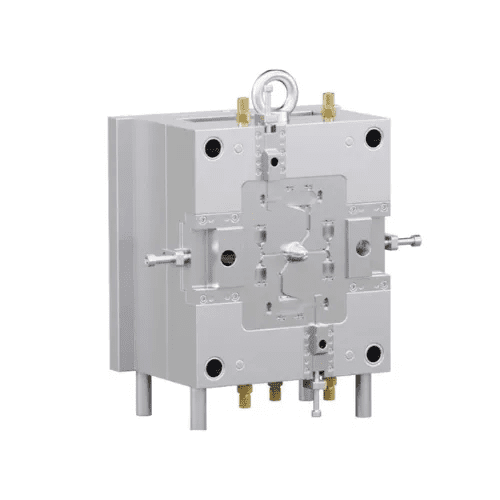

In die casting, different types of molds are used, including steel molds, also known as dies. These dies are typically made from hardened steel and consist of two halves, the “fixed half” and the “movable half.” The fixed half remains stationary, while the movable half is attached to the die casting machine and opens and closes during the casting process. The molds are precision-engineered to create the desired shape and intricacies of the final product. The choice of mold material and design depends on factors such as the casting material, complexity of the part, and production volume.
Aluminum die-cast toolings are prepared using a variety of methods and materials. It is made using the final object’s template. The material that was utilized to build the molds is visible in the die-cast item. Designing, construction, secondary processing, assembly are main four process.
Creating a die cast mold involves several steps. First, a design for the mold is created, considering factors like part geometry and material. Next, the mold is crafted using high-quality steel or other suitable materials. The mold is precision machined to the desired shape and features. Cooling channels are incorporated to regulate temperature during the casting process. Finally, the mold undergoes surface treatments and finishes to enhance durability and release properties. The process requires expertise in mold design, machining, and surface treatment to ensure optimal performance and quality in die casting production.
Die casting is a process that uses high pressure to force molten metal into a mould. Mold casting is a process that uses gravity to fill a mould with molten metal. Die casting produces parts that are more precise and have a better surface finish than those produced by mould casting.
Aluminium.magnesium,zinc and brass are four common materials for die casting.
Die casting offers several advantages that make it a preferred manufacturing process in certain applications. It allows for the production of complex, intricate, and high-precision parts with tight tolerances. Die casting provides excellent dimensional accuracy and repeatability, resulting in consistent part quality. The process allows for high production rates and cost efficiency, making it suitable for large-scale manufacturing. Additionally, die casting offers excellent material properties, such as high strength and durability. It is often utilized in industries like automotive, aerospace, electronics, and appliances, where these advantages are crucial for efficient and reliable production.
Yes, die casting molds can be reused multiple times. The molds, typically made of high-quality steel, are designed to withstand the high temperatures and pressures involved in the die casting process. After each casting cycle, the mold can be cleaned, inspected, and prepared for the next production run. Proper maintenance and occasional repairs, such as weld repairs or cavity replacements, can extend the lifespan of the mold. Reusing molds in die casting helps optimize production costs and ensures consistent part quality throughout multiple production runs.
